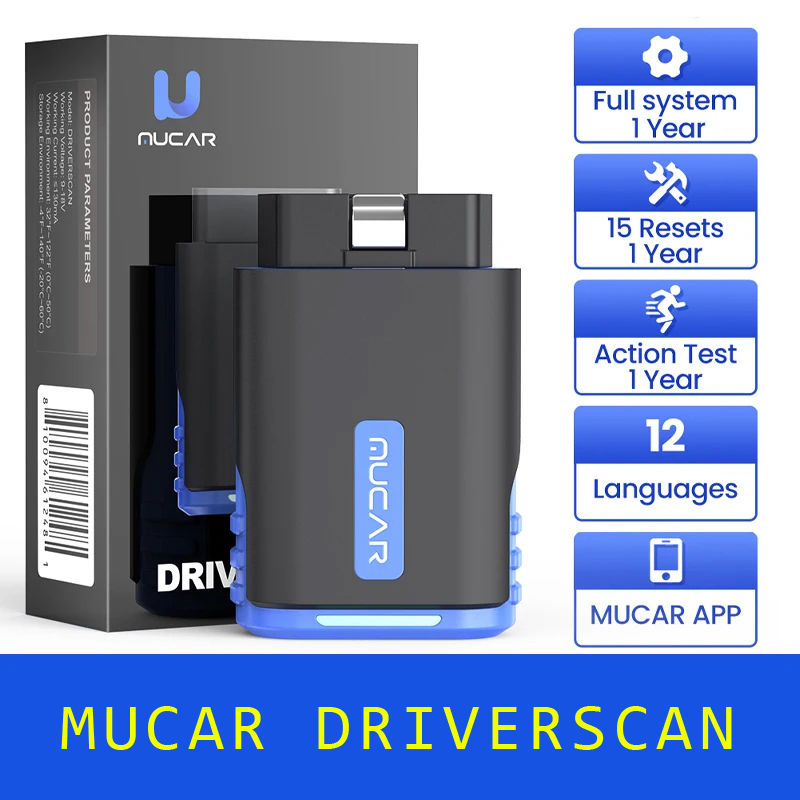

MUCAR DriverScan OBD2 Scanner Bluetooth, Bi-directional scan Tool OE Level All System Diagnostic 15 Service Function

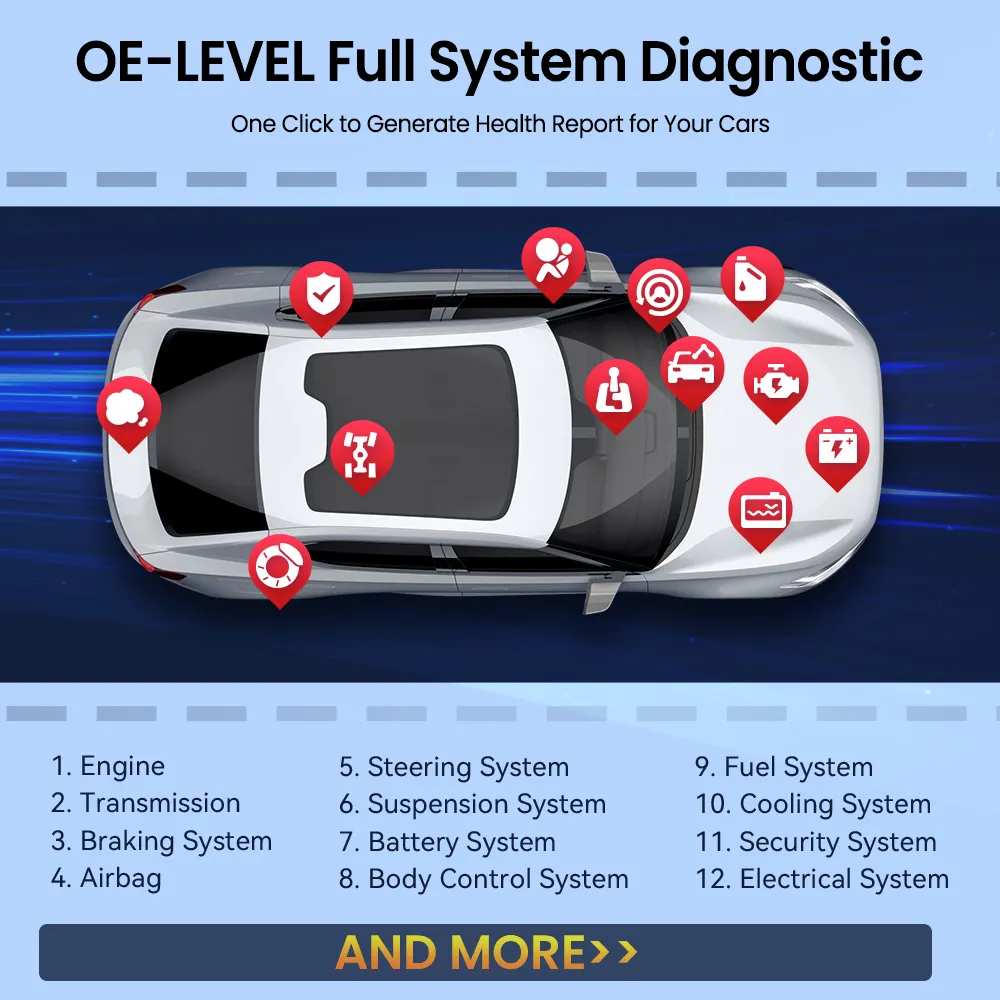

Full System Diagnosis for all cars

MUCAR DriverScan can access ALL available vehicle ECU systems and read ECU information to facilitate the vehicle diagnoses such as ECM(Engine System), ABS(Anti-Lock Brake System), SRS(Airbag System), TCM(Transmission System), TPMS(Tire Pressure Monitor System), SAS(Steering Angle System), BCM(Body Control System), EPB(Electric Park Brake System), EPS(Electric Power Steering System), AC(Air Conditioning System), IC(Instrument System) and Security System. Fast Scan and Read/Clear fault codes in seconds, effectively turn off the warning light.

Check Engine System: this diagnostic tool will read the fault codes, find the cause of the check engine light and point out the problems. This car scanner can show you the live data stream in a graph.
Diagnose ABS System: checks all ABS to retrieve DTCs, views the live data, and offers you specific info of pending codes.
Read SRS System: detects existing problems to prompt a certain replacement or repair in time to ensure driving safety.
Transmission System: This car Bluetooth diagnostic tool reads diagnostic codes from the transmission system and detects whether the car’s speed and load match its transmission’s power output.
Tire Pressure Monitoring System: Identify whether the ID information stored in the electronic control unit is consistent with the tire pressure sensor ID to achieve communication and ensure vehicle safety.

Support 15 Resets Service

MUCAR DriverScan support 15 reset functions menu and more maintenance function under the exact car menu:.
1. Oil Lamp Reset Service: This allows you to perform a reset for a new calculation of the Engine Oil Life system once changed the oil.
2.EPB service: it is important in the maintenance of electronic braking system's safety and efficiency.
3.BAT battery service : allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4. DPF service: especially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in, and DPF teach-in after replacing the engine control unit.
5.SAS service: helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6.TPMS service : makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7.IMMO Key Programming: the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8. ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system
9.Sunroof Reset: The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies
10.Suspension Reset:Try reset electronic suspension air ride with the massage system close all doors koeo flip through measage system go to suspension reset or on off
11.Gearbox Reset: Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programing method of the TCU / ECU drive the car.
12.AFS Headlamp Reset ：'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel
13.Injector Coding ：Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off
14.Throttle Adaptation The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair
15. Gear Learning: The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running

Note: Not all 15 resets function compatible with all cars, if you want to check compatibility please send car VIN number and function you need for us to check.

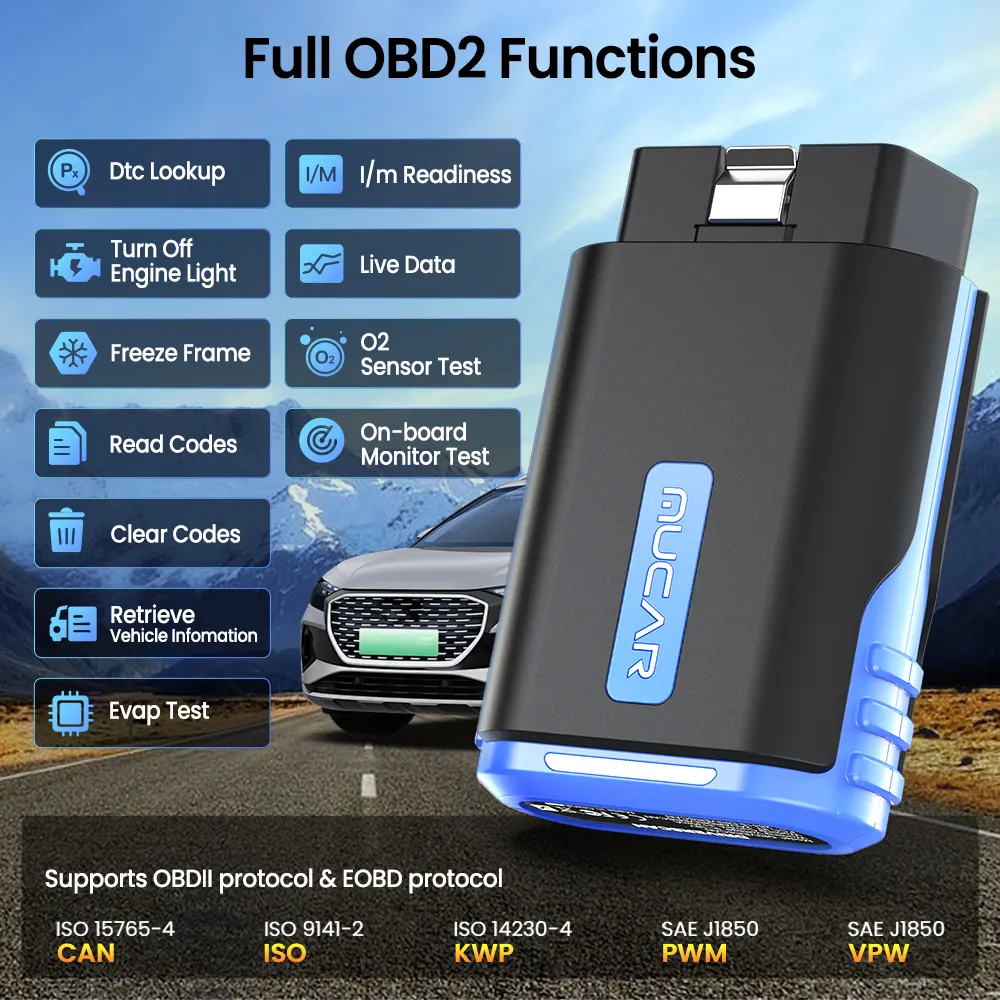

All Cars Lifetime free All 10 Mode OBDII/EOBD Functions:

Supported models: compatible with all models supporting OBD II protocol after 1996
supporting agreement:ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)"
Mode 1:Read live data stream
Mode 2:Read freeze frame data
Mode 3:Read DTCs(diagnostic trouble codes)
Mode 4:Clear dtcs
Mode 5:Oxygen sensor monitoring
Mode 6:System monitoring
Mode 7:Read pending DTCs
Mode 8:Control operation of on-board system
Mode 9:Read vehicle information
Mode 10:Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Support Cover Up to Over 115 Major Vehicle Manufacturers From America, Europe and Asia

MUCAR DriverScan can be detect almost all vehicles in America, Europe, and Asia Pacific regions with OBD port. Please click here to check the Vehicle Coverage.
Examples are as follows:
European and American area
Ford Europe, Mercedes-Benz commercial vehicles, MINI, West, Audi, GMSA, Fiat, Opel, GAZ, Peugeot, Volkswagen, Porsche, Citroen, Skoda, Rover, Land Rover, Volvo, VAZ, Renault, Elves, Mercedes-Benz, Jaguar, Dacia, Lancia, BMW, Romeo, Saab, Ford, Chrysler, GM.

Asia-pacific region
Thailand Isuzu, Acura, Daewoo, Jianghuai cars (GM), Ssangyong, Infiniti, Proton, Honda, Mazda, Perodua, Jiangling Automobile, Mahindra (MAHINDRA), Isuzu, Suzuki, Byd auto, Chery cars, Toyota, Nissan, Kia, The Car, The Great Wall in cars, Daihatsu, Changan automobile, Geely automobile, Xiamen Jinlong, Zhongxing automobile, Hafei automobile, New Kay, Gonow automobile, Changhe automobile, Hyundai, Liuzhou Wuling, Subaru, Xiali, Australia ford, Mitsubishi, TATA, Zhongtai automobile, Horton, MARUTI, Lexus

Read Live Data Stream/Auto VIN Scan

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

Support Vehicles Diagnostic Report

1.Generate diagnostic report in MUCAR APP
2.Download the diagnosis report and transfer it to the computer to print the diagnosis report
3.Share your diagnosis report with your partner or car owner

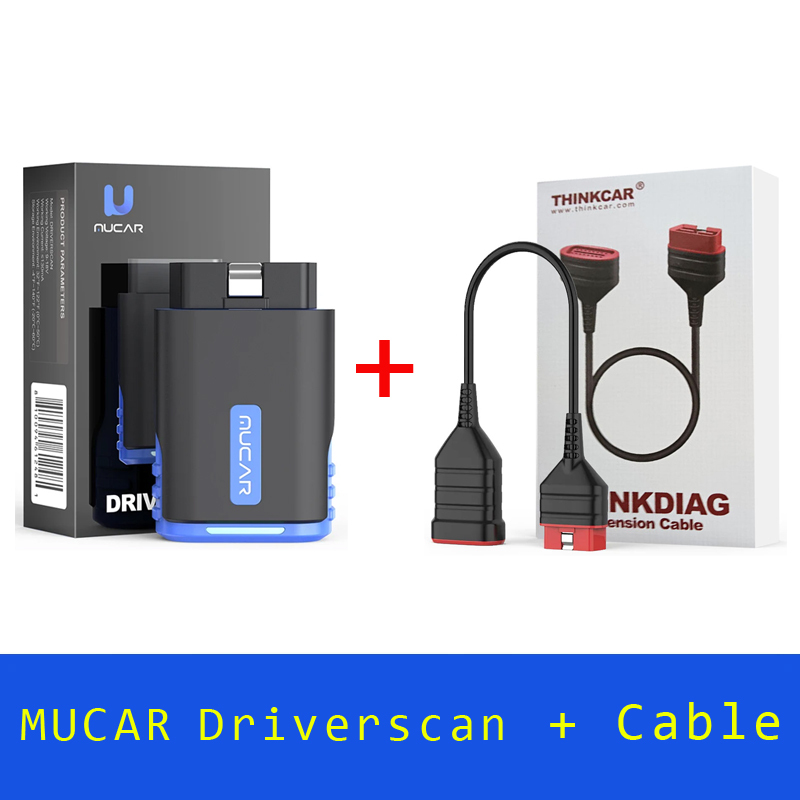

Packing lists

1* OBD2 connector
1*User Manual
